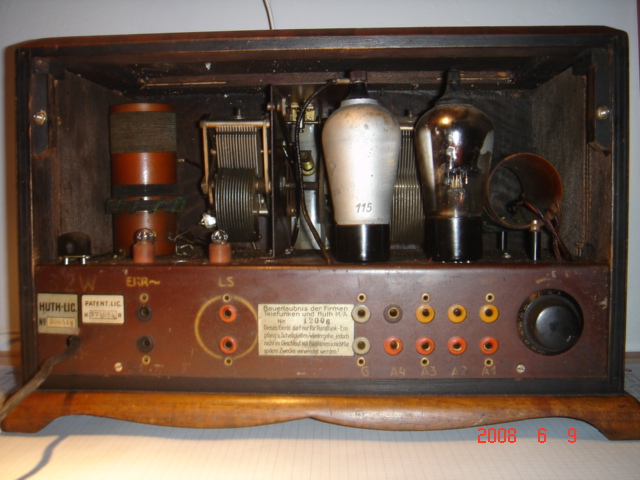

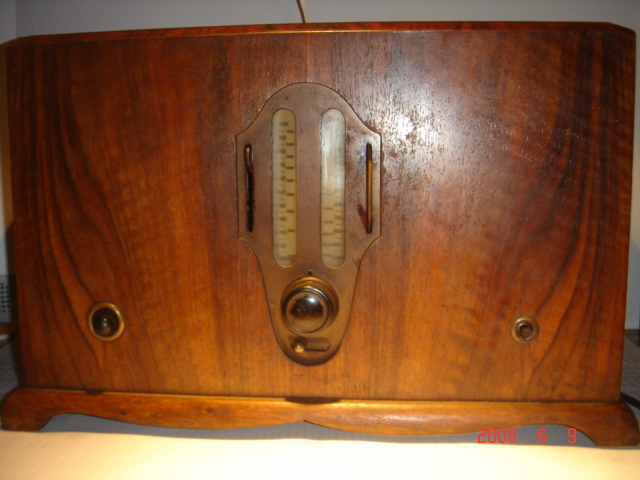

Does anybody can help me with the set shown on photos below? It's signed as "32W", and the original tubeset was 506, C443, E442, E442 (as written on chassis). I need a schematic because something(!?) ate the condensers - thanks God the coils are ok.
!!!
Fotos, Grafiken nur über die
Upload-Option des Forums, KEINE FREMD-LINKS auf externe Fotos.
!!! Keine
Komplett-Schaltbilder, keine Fotos, keine Grafiken, auf denen
Urheberrechte Anderer (auch WEB-Seiten oder Foren) liegen! Solche Uploads werden wegen der Rechtslage kommentarlos gelöscht!
Keine Fotos, auf denen Personen erkennbar sind, ohne deren schriftliche Zustimmung.
Hello spiga, i have got a wiring diagram of 33 W that uses tubes 506 E452, E442, C443 . So it might be similar to the 32 W ? Regards Jürgen H
Hi Thank you for your kindness - I also have this schema (from Empfaenger Schaltungen) but the similarity is only between the valves used. I found a kind of schema at one's forum - it's practically unreadable, but the principle is visible (see attachment). Thank you once more Henryk
(Moderator: Dear Henryk, sorry - the attached schematic had to be removed due to violation of copyright rules. Please refer to the FAQ´s of this forum for more details. Best regards, Jürgen rf)
